Adapter for Shimano front derailleur | for set 56T-40T

Adapter for Shimano front derailleur | for set 56T-40T

$28.00

Color: Black

Black

Share

Shipping and processing

Processing time: up to 10 business days. Shipping time: 2 to 7 business days. Provided by FedEx

Return policy

You can return an unused product within 30 days

Black ALUGEAR front derailleur adapter, machined aluminium, oval slot, TOP 1 degree marking, side view

Adapter for Shimano front derailleur | for set 56T-40TBlack

$28.00

Learn more

Technical specifications

Intended use	Road, Time Trial bikes
Bolt	M5 x 16mm, titanium, black
Recommended torque	5 - 7 Nm
Weight	4g
Made	CNC milling
Surface coating	anodizing
Delivery includes	1pc. adapter, 1pc. titanium bolt

Compatibility

Drivetrains	Shimano 2x12-speed Road front derailleur: Dura-Ace R9200, Ultegra R8100 and 105 R7100 series Di2, as well as Shimano 105 mechanical
Shifting	2x12sp Shimano drivetrains
Chainrings	56T Outer chainring

Recommendations

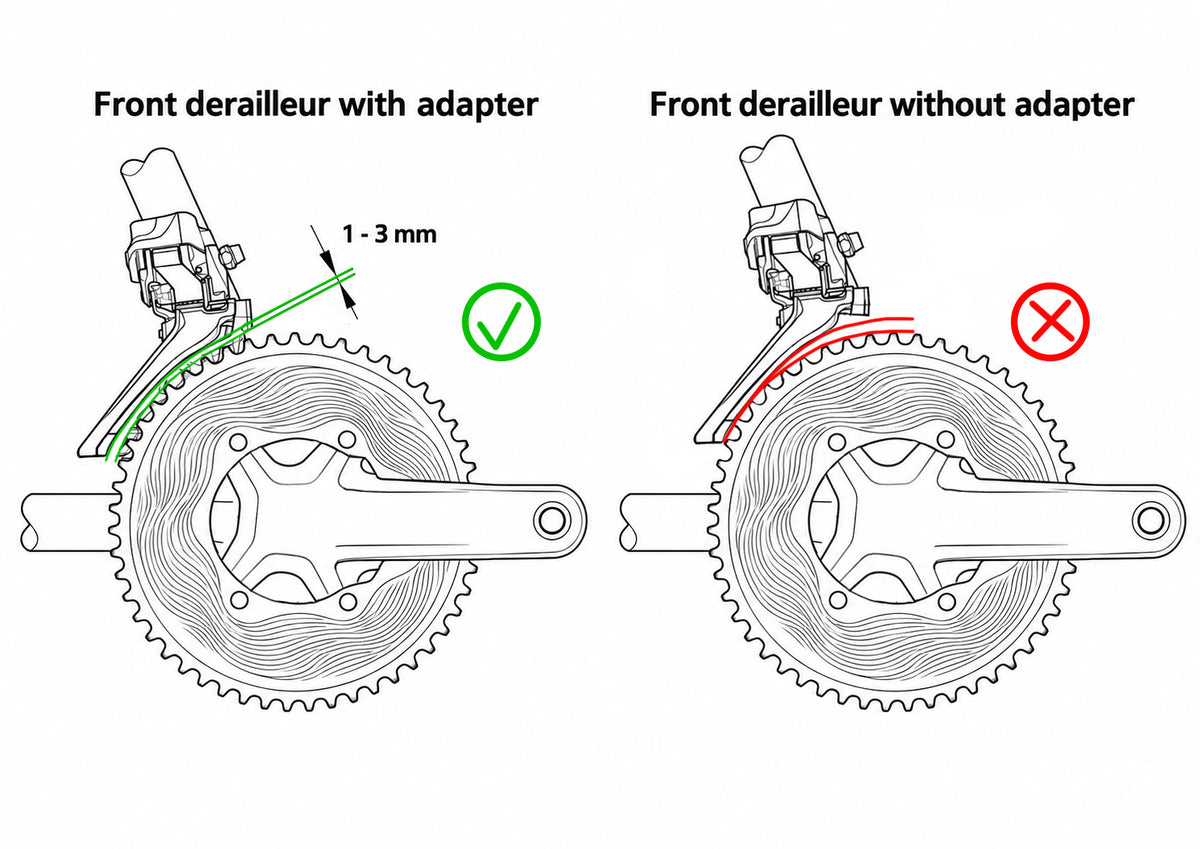

The front derailleur adapter is designed to reposition the derailleur so that its cage follows the curvature of the large chainring with a consistent clearance along the entire circumference. Without the adapter, the lower edge of the derailleur cage is not properly aligned with the 56T chainring and may result in poor or inconsistent front shifting

Installation Instructions

Front Derailleur Adapter Installation for 56T-40T set	Download

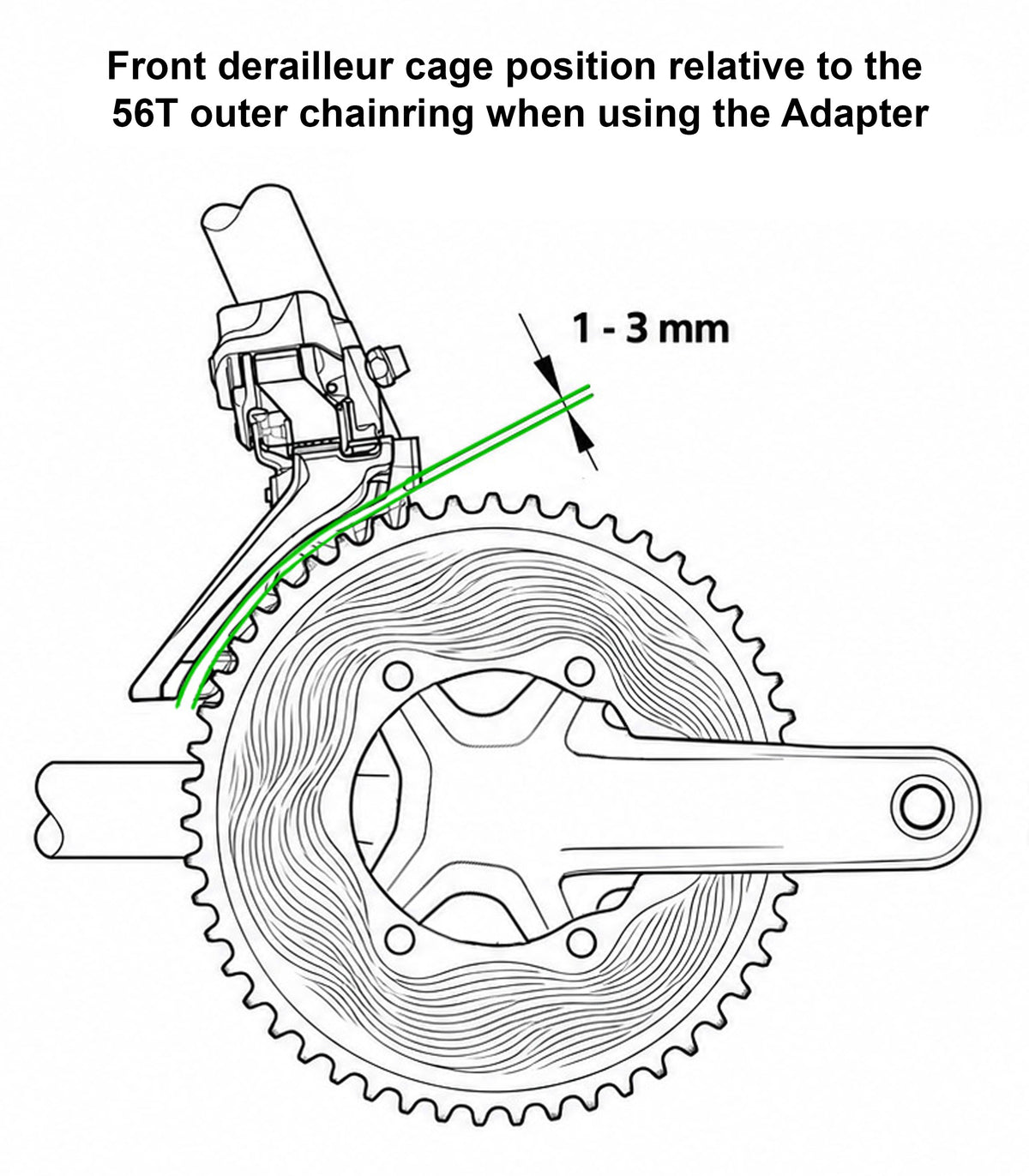

Correct front derailleur position relative to the chainring 56T	Download

Information

ALUGEAR front derailleur Adapter

Precision-engineered to optimize front shifting when using large chainrings on road double setups.

Installing a larger front chainring often requires adjusting the position and angle of the front derailleur cage. The ALUGEAR adapter repositions the front derailleur slightly backward and subtly changes the cage angle by 1°. This ensures that the gap between the derailleur cage and the front chainring teeth is the same along the entire length of the cage.

Using the ALUGEAR adapter allows for fine-tuned derailleur alignment and optimal drivetrain performance with large front chainrings.

Important:

Accurate front derailleur setup is critical. Please pay special attention during installation and adjustment, as shifting precision and long-term reliability depend on correct alignment.
