AERO 2X for Shimano Drivetrains

THREAD MOUNT 2X

Chainring set for a SRAM AXS Thread Mount power meter on a Shimano 12-speed road drivetrain. 52-36T and 54-40T, machined in Poland.

Configure & buy
Two systems

SRAM power meter with Shimano shifting. Now its possible.

Power meter

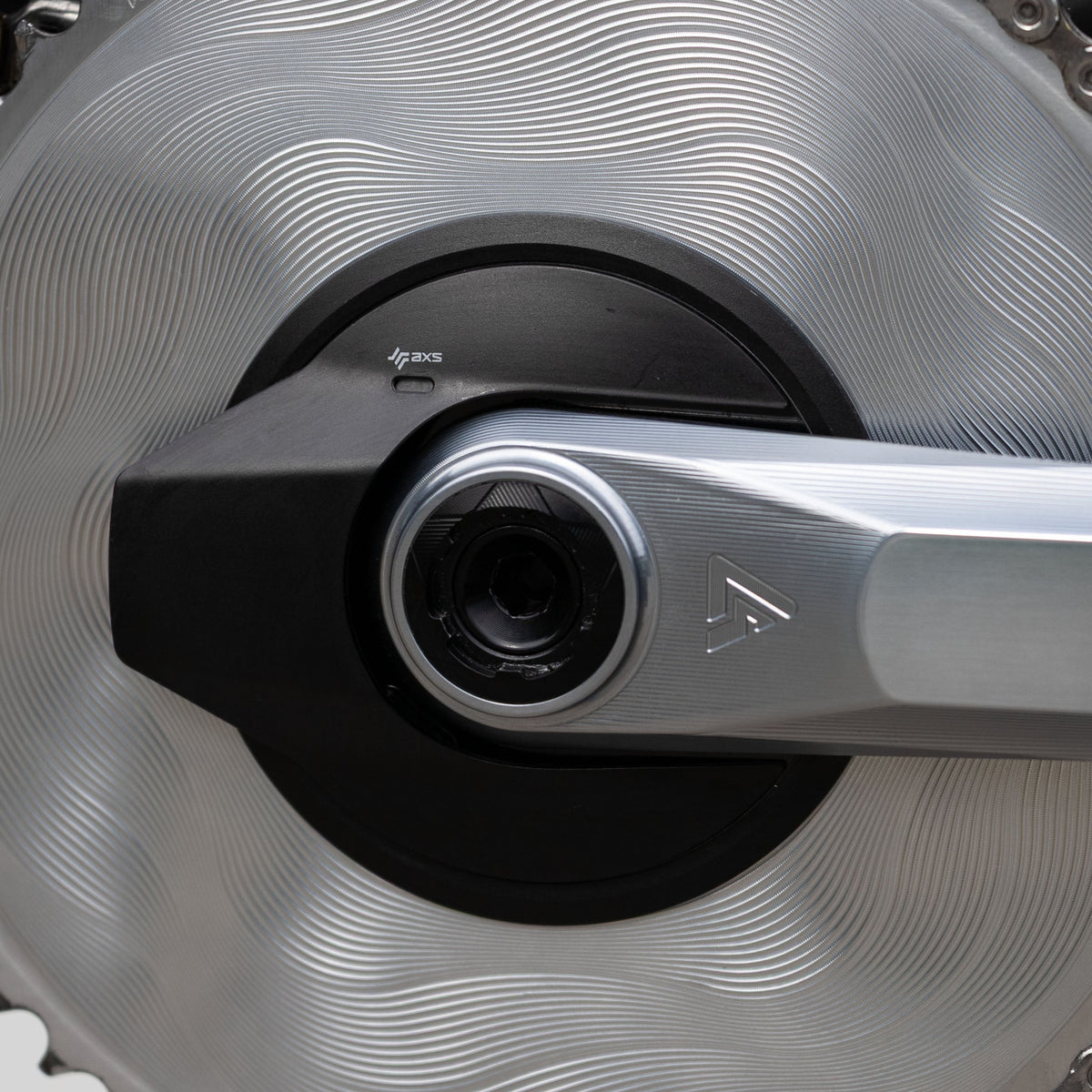

SRAM AXS Thread Mount on an 8-bolt DUB crank

The power meter bolts to the crank. The rings mount to the power meter.

Shifting

Shimano 12-speed drivetrains

Dura-Ace R9200, Ultegra R8100, 105 R7100 Di2 and 105 mechanical.

Anatomy

Back and front

Drag the handle to compare the two sides of the set.

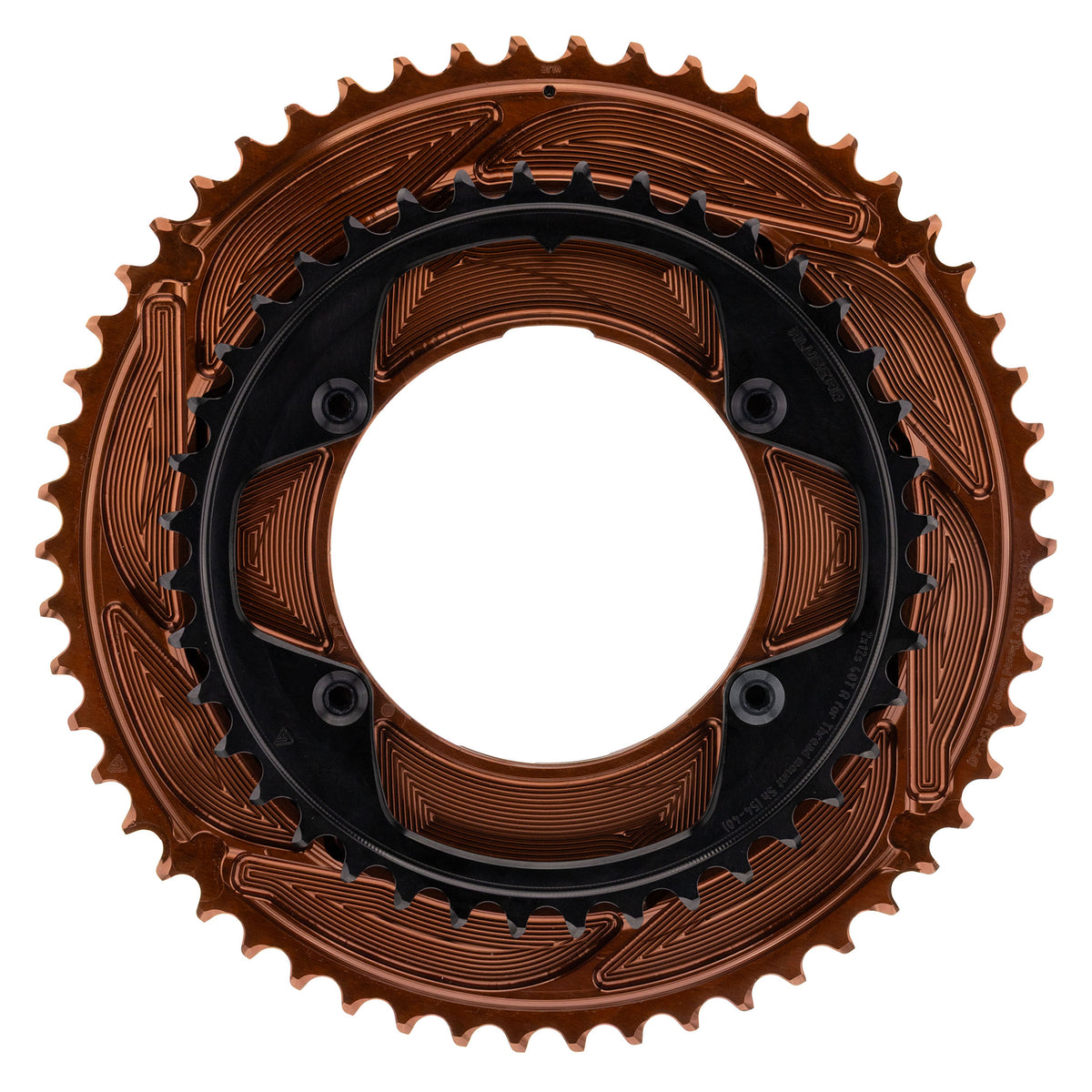

Backside. The working side. The inner ring mounts here on four 5 mm hex bolts (10 Nm maximum), and the shift ramps and pins are milled into this face so the chain climbs from the inner ring to the outer. The Thread Mount interface in the centre fastens the set to the SRAM AXS power meter; removing it takes the SRAM Thread Mount tool.

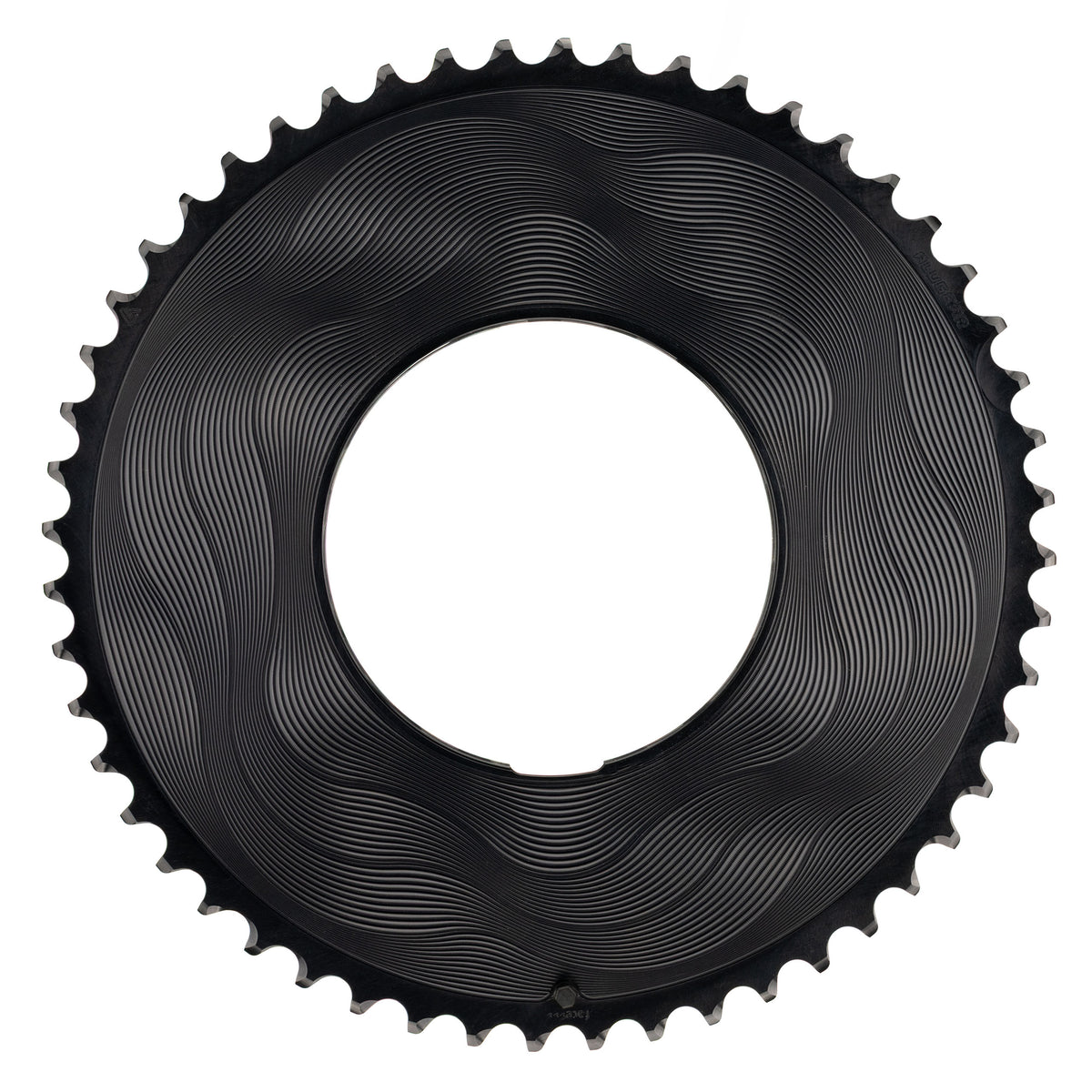

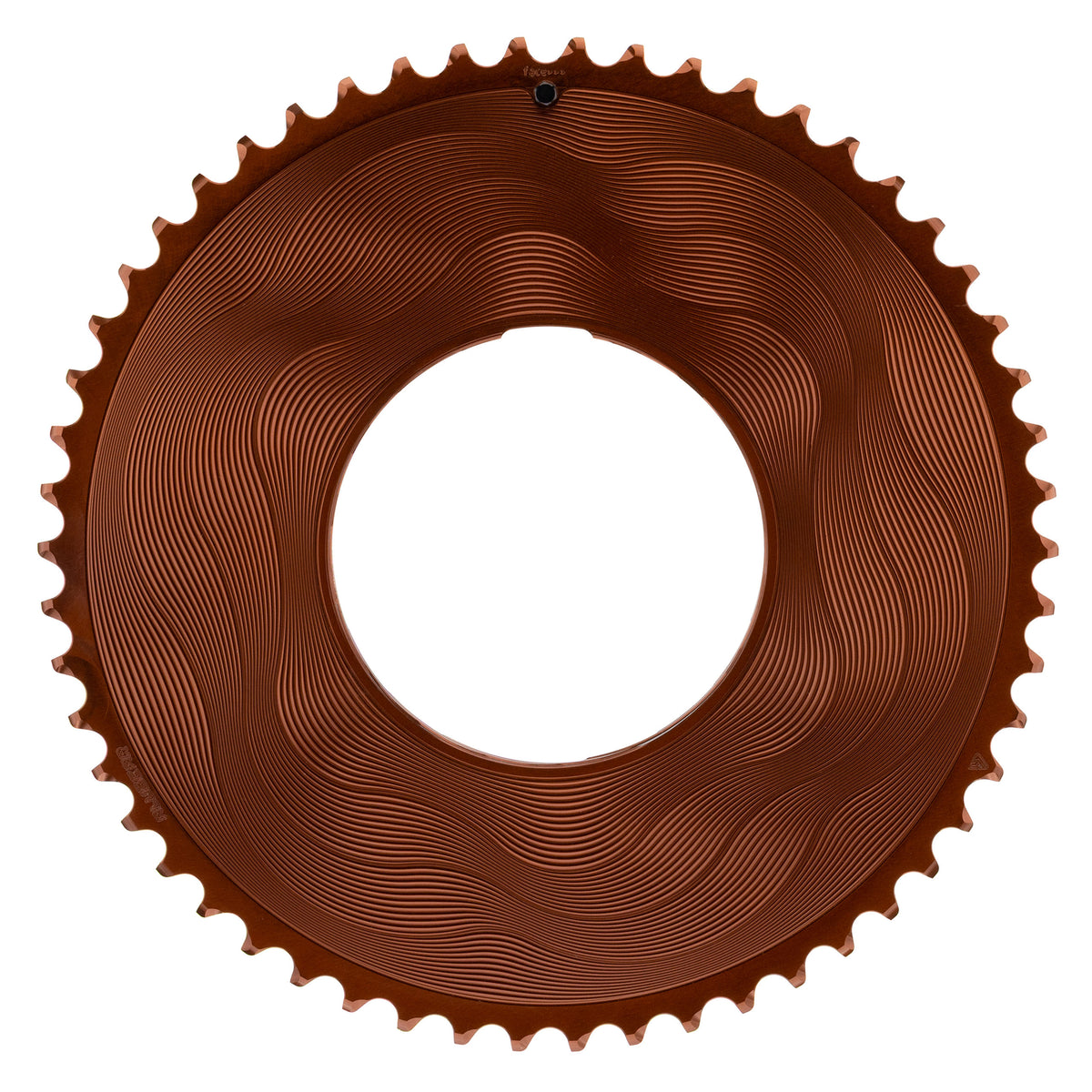

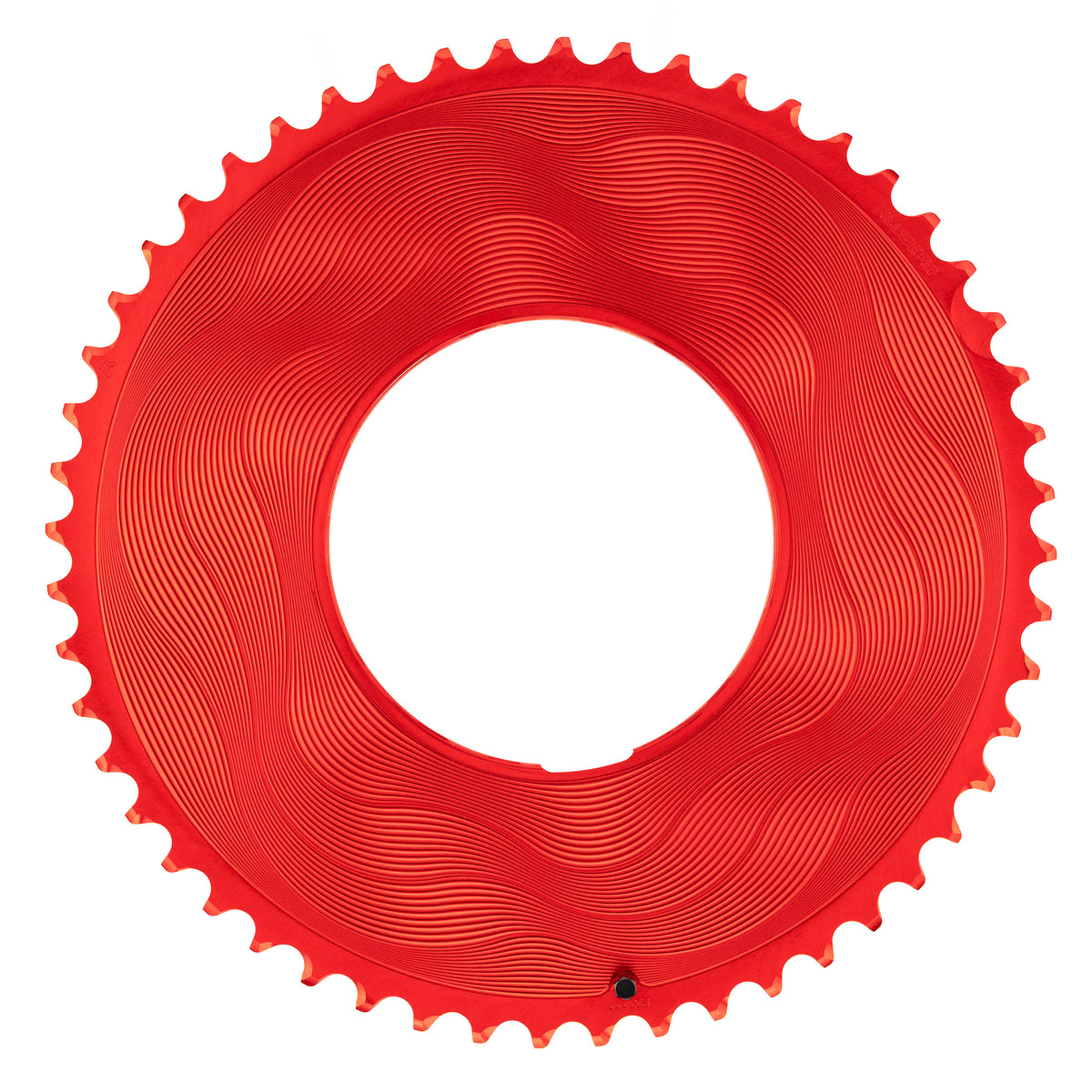

Frontside. The visible side. The AERO pattern runs across the whole outer face, a relief machined into the aluminium that changes with the light and the viewing angle. Anodized in one of ten colours, it is the face the bike shows.

BACKSIDE

FRONTSIDE

Use the left and right arrow keys to navigate between before and after photos.
Fitment

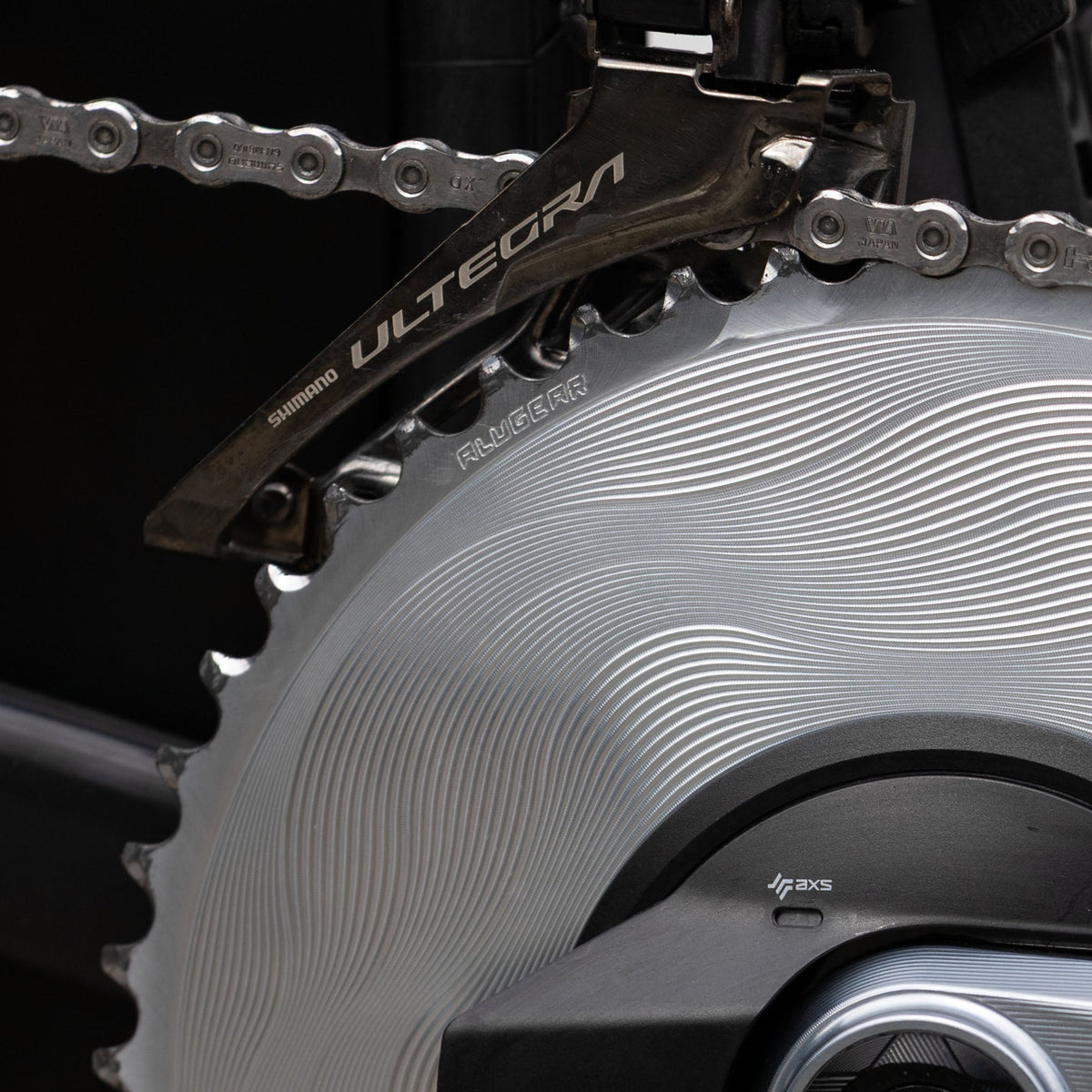

Shimano 12-speed, front to back

The 44.5 mm chainline puts the rings where the Shimano front derailleur expects them. Everything behind the crank stays Shimano.

Drivetrains

Dura-Ace R9200, Ultegra R8100 and 105 R7100 Di2. 105 mechanical 12-speed.
Chain

Shimano 12-speed road
Chainline

44.5 mm
Sizes

52-36T at 190 g, 54-40T at 218 g, bolts included
Crank

8-bolt DUB with a SRAM AXS Thread Mount power meter. DUB road bottom bracket.

MADE IN POLAND

52-36T · 54-40T

44.5 MM CHAINLINE

7075-T6

FROM 190 G

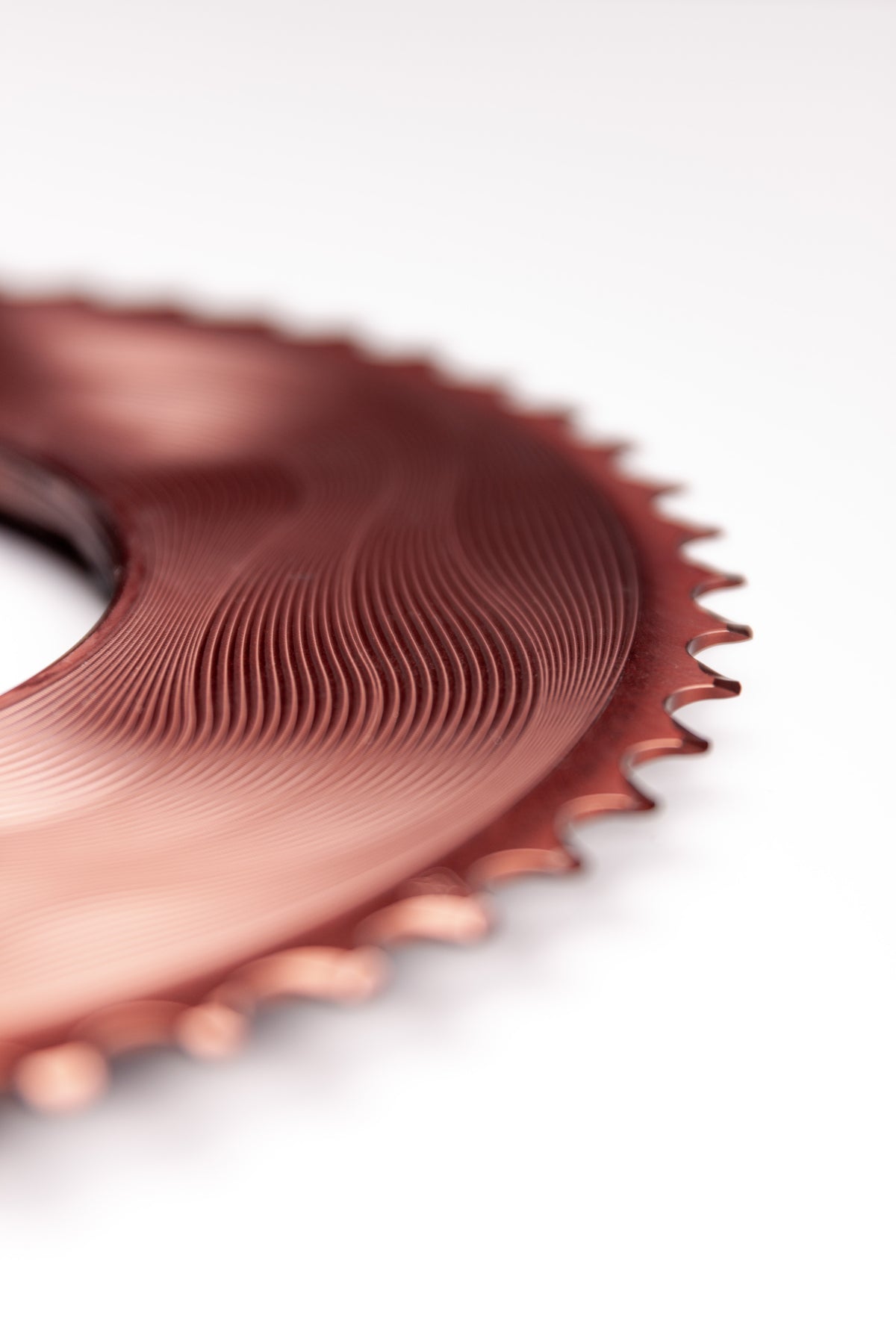

AERO surface

The pattern is the metal

Cut in the same pass

The relief on the outer ring is milled in the same CNC pass as the ring itself, then anodized with it. It changes with the light and with the angle of the crank.

Chainring Set 2X Thread Mount for Shimano drivetrains
Chainring Set 2X Thread Mount for Shimano drivetrains
Chainring Set 2X Thread Mount for Shimano drivetrains
Chainring Set 2X Thread Mount for Shimano drivetrains
Chainring Set 2X Thread Mount for Shimano drivetrains
Chainring Set 2X Thread Mount for Shimano drivetrains
Chainring Set 2X Thread Mount for Shimano drivetrains
Chainring Set 2X Thread Mount for Shimano drivetrains
Black ALUGEAR AERO road chainring close-up, round, machined concentric wave finish, 110 BCD 4-bolt Shimano 12-speed
Silver polished ALUGEAR AERO road chainring close-up, round, machined concentric wave finish, 110 BCD 4-bolt Shimano 12-speed
Red anodized ALUGEAR AERO road chainring close-up, round, machined concentric wave finish, 110 BCD 4-bolt Shimano 12-speed
Close-up macro detail of blue anodized ALUGEAR AERO outer GRX chainring teeth and wave-machined surface
Orange anodized ALUGEAR AERO road chainring close-up, round, machined concentric wave finish, 110 BCD 4-bolt Shimano 12-speed
Green anodized ALUGEAR AERO road chainring close-up, round, machined concentric wave finish, 110 BCD 4-bolt Shimano 12-speed
Gold anodized ALUGEAR AERO road chainring close-up, round, machined concentric wave finish, 110 BCD 4-bolt Shimano 12-speed
Purple anodized ALUGEAR AERO road chainring close-up, round, machined concentric wave finish, 110 BCD 4-bolt Shimano 12-speed
Mocha brown ALUGEAR AERO road chainring close-up, round, machined concentric wave finish, 110 BCD 4-bolt Shimano 12-speed
Steel blue ALUGEAR AERO road chainring close-up, round, machined concentric wave finish, 110 BCD 4-bolt Shimano 12-speed
Chainring Set 2X Thread Mount for Shimano drivetrains
alugear

Chainring Set 2X Thread Mount for Shimano drivetrains

ALUGEAR AERO 2X Chainring Set for Sram AXS DUB Thread Mount Power Meters and optimized for use with Shimano Dura-Ace R9200, Ultegra R8100, 105 R7100 12-speed drivetrains

Sale price$186.00
Color: Black
Size: 52T-36T
Share

Shipping and processing

Processing time: up to 10 business days. Shipping time: 2 to 7 business days. Provided by FedEx

Return policy

You can return an unused product within 30 days
Chainring Set 2X Thread Mount for Shimano drivetrains
Chainring Set 2X Thread Mount for Shimano drivetrainsBlack / 52T-36T Sale price$186.00
Learn more

Technical specifications

Intended use
 Road, Time Trial bikes
Optimum chainring combinations
 52-36T; 54-40T
Mounting position
 outer 52T, inner 36T; outer 54T, inner 40T
Chainline
 44,5mm
Weight
 52 teeth - 153g, 36 teeth - 32g; 54 teeth - 168g, 40 teeth - 45g; 4 bolts - 5g
Chainring interface
 Tread Mount
Material
 Aluminum 7075-T6
Made
 CNC milling
Surface coating
 Anodizing
Made in
 Poland
Delivery includes
 1pc. outer, 1pc. inner chainrings, 4pcs. bolts

Compatibility

Drivetrains
 Shimano 12-speed Road: Dura-Ace R9200, Ultegra R8100 and 105 R7100 series Di2, as well as Shimano 105 mechanical 12-speed drivetrains
Shifting
 2x12sp Shimano drivetrains
Chains
 12sp Shimano HG+ chains
Cranks
 DUB Road Cranksets featuring an 8-bolt direct-mount interface (the power meter is first mounted directly to the crank using the 8-bolt interface. The ALUGEAR AERO 2X Chainring Set is then threaded directly onto the power meter using the Thread Mount interface)
Powermeter
 Thread Mount Powermeter DUB AXS Spider
NOTE!

Not compatible with Sram front derailleurs and Sram chains

The Thread Mount interface provides compatibility with the appropriate power meter mounting system, but does not make the chainring set compatible with Sram shifting components

Recommendations

  • NOTE: the Sram Thread Mount Removal Tool is required to remove and reinstall the chainrings
  • It is also a good idea to use a new chain with your new ALUGEAR chainrings
  • It is recommended to use a well-lubricated chain on every ride
  • We recommend using the optimal Alugear 2x chainring combinations for the best shifting performance. Other chainring combinations may result in less precise front shifting and may require additional front derailleur adjustment
  • The correct operation of the double set is guaranteed only when using Alugear outer and inner chainrings together
  • Tool holder: 5 mm hexagon socket maximum permissible torque: 10 Nm

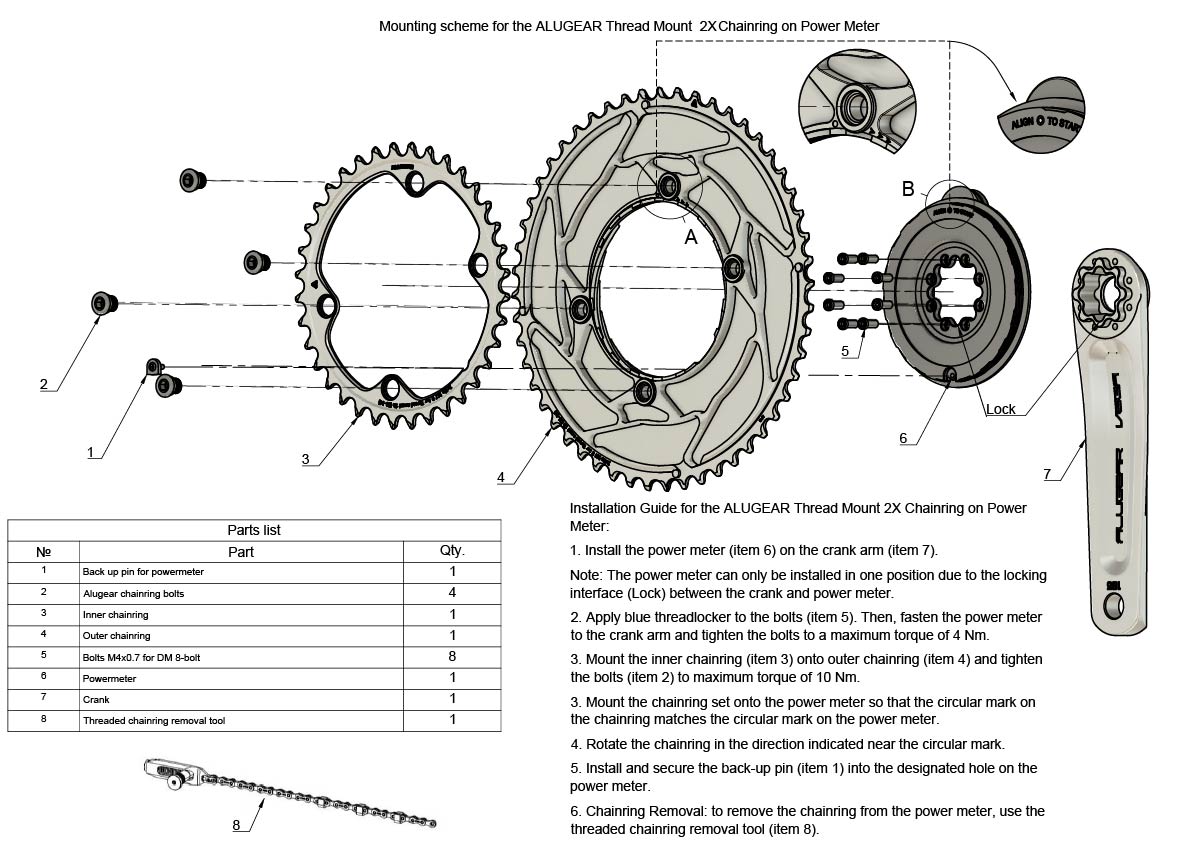

Installation Instructions

Instalation Instruction 2X Chainring set Thead mount for Shimano drivetrains Download

7075-T6

Aerospace grade aluminium

Ramped & pinned

Reliable 2X shifting under any conditions

10 colours

Match your bike with multiple anodized options

Information

ALUGEAR AERO Chainring. Sram Powermeter. Shimano Shifting

ALUGEAR AERO Chainrings. Sram Power Meter. Shimano Drivetrain. One Integrated Solution.
The ALUGEAR AERO 2X Chainring Set was designed for riders who want to combine the clean, rigid and highly integrated design of a Sram AXS DUB Thread Mount Power Meter with the shifting performance of a Shimano road drivetrain.
Instead of being limited to a complete drivetrain from a single manufacturer, this solution brings together the advantages of both systems - Sram’s compact Thread Mount power meter architecture and Shimano 12-speed shifting - connected by a ALUGEAR chainring set engineered specifically to make the combination work.
The complete shifting geometry - including ramps, chain pick-up features, tooth profiles and their precise positioning - has been developed specifically for Shimano 12-speed road chains and front derailleurs.
Multiple strategically positioned engagement points around the large chainring provide more opportunities for the chain to engage during an upshift, helping deliver fast, precise and consistent shifting from the small to the large chainring.
The system uses an optimized 44.5 mm chainline, designed specifically for proper alignment and performance with Shimano 12-speed road drivetrains.

Compatibility & Installation
To build this configuration, a DUB crankset with an 8-bolt interface is required. The Sram Thread Mount Power Meter uses an 8-bolt interface to connect directly to the crankset.
As these cranksets use a DUB spindle, the bicycle must also be equipped with the appropriate DUB Road bottom bracket for the frame.
The system is assembled in three steps:
8-bolt DUB crankset → Sram AXS Thread Mount Power Meter → ALUGEAR AERO 2X Thread Mount Chainrings

Performance Meets AERO Design.
The AERO construction gives the drivetrain a clean, integrated appearance while creating a visually distinctive centerpiece around the Thread Mount power meter.
The large chainring features ALUGEAR’s signature Design; a three-dimensional surface is an integral part of the component, combining precision CNC manufacturing with ALUGEAR’s distinctive design language.

Together with 10 anodized color options, the AERO 2X allows the drivetrain to become an integral part of the overall bicycle design - from subtle, understated builds to completely custom bikes.

From CAD development and shifting geometry to CNC machining, finishing and testing, ALUGEAR AERO 2X Chainrings are designed, engineered and manufactured in Poland.

A solution created for riders who do not want to choose between Sram power measurement, Shimano shifting performance and distinctive Aero design.

ALUGEAR - Engineered to Perform. Designed to Stand Out.
