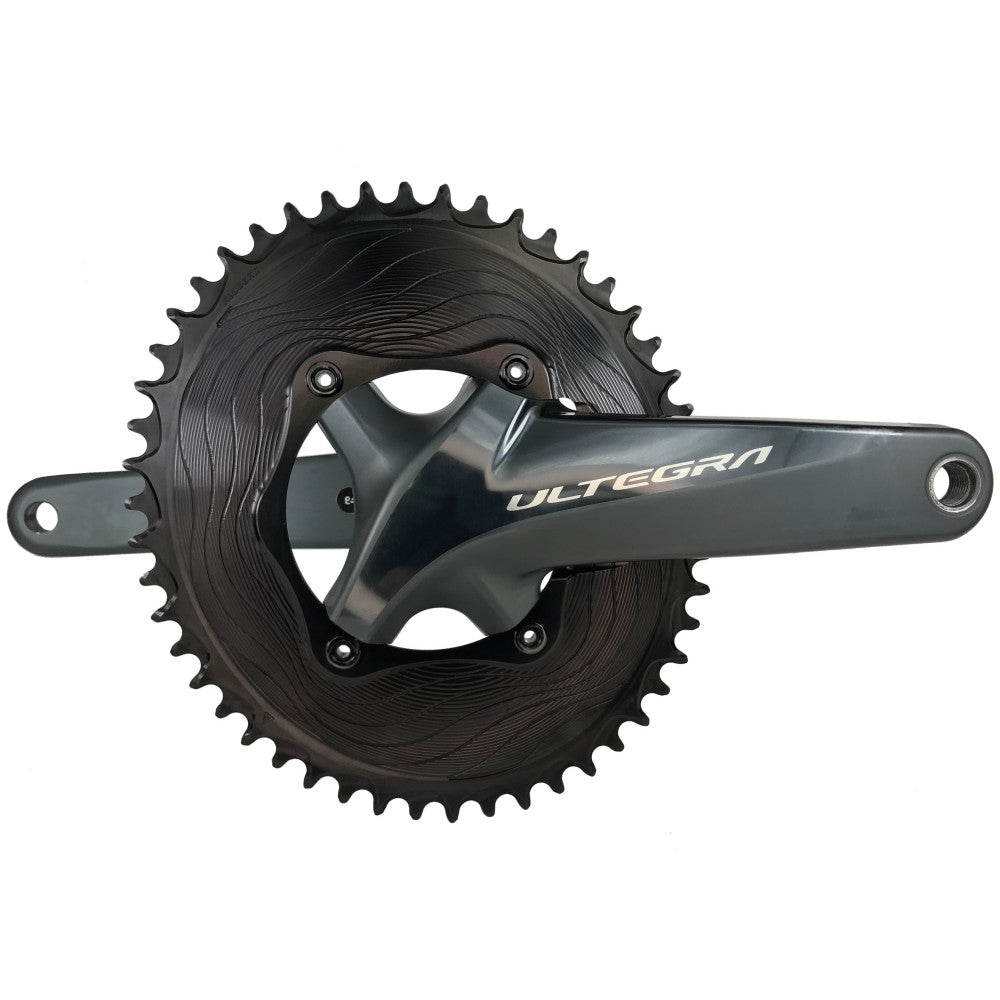

Black oval ALUGEAR AERO road chainring on Shimano Ultegra crank, 110 BCD 4-bolt asymmetric, machined wave finish
alugear

Oval 1X for 11sp 110 BCD 4b Shimano Asymmetric

Chainring 1-speed narrow-wide Oval for 110 BCD 4b Shimano Asymmetric Road 1x11 speed

Sale price€89,00
Color: Black
Size: 40T
In stock
Share

Shipping and processing

Processing time: up to 10 business days. Shipping time: 2 to 7 business days. Provided by FedEx

Return policy

You can return an unused product within 30 days

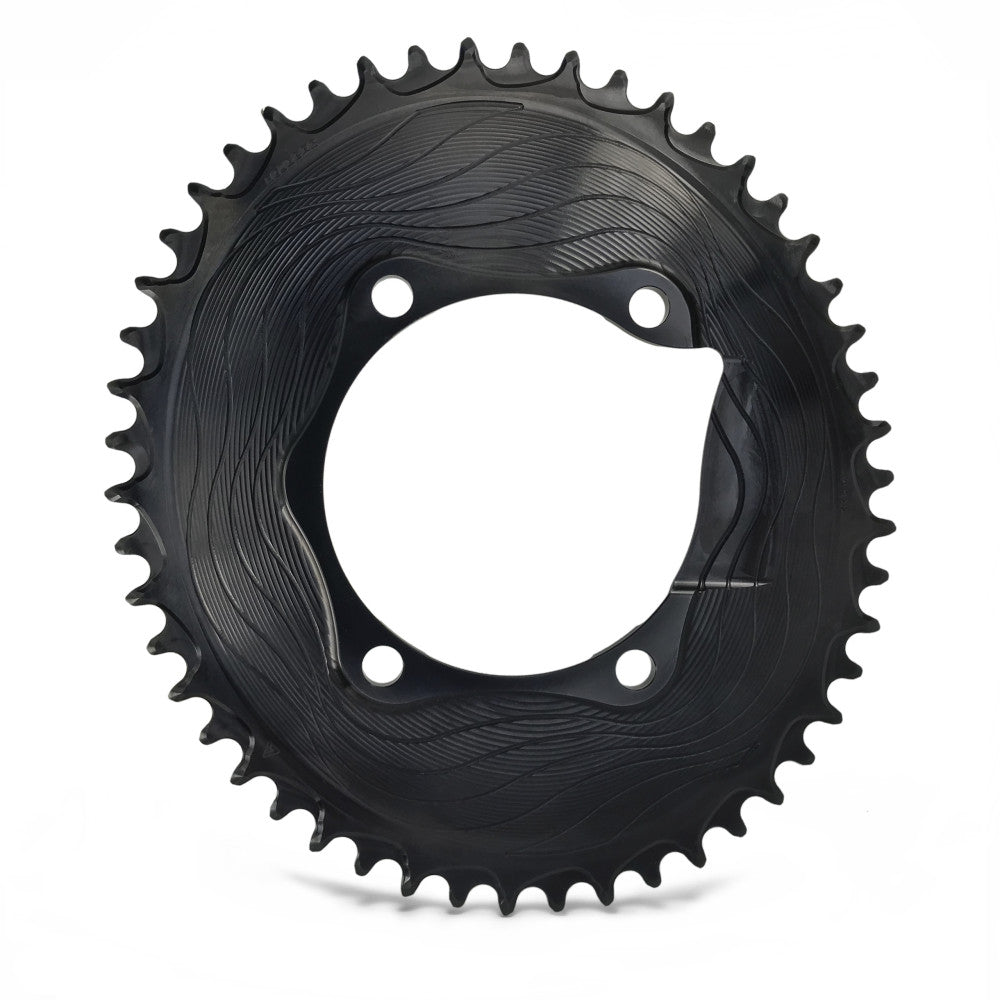

Black oval ALUGEAR AERO road chainring, 110 BCD 4-bolt Shimano asymmetric, machined wave finish, 1X
Oval 1X for 11sp 110 BCD 4b Shimano AsymmetricBlack / 40T Sale price€89,00
Learn more

Technical specifications

Intended use
 Road, Time Trial bikes
Offset
 40T-52T 3,0mm; 54T-56T 2,0mm; 58T-60T 1,0mm; 62T 0,0mm (The offset on larger chainrings is designed to provide adequate clearance to the frame chainstay)
Diameter
 40T- 178mm; 42T- 186mm; 44T- 194mm; 46T- 202mm; 48T- 210mm; 50T- 218mm; 52T- 226mm; 54T- 234mm; 56T- 242mm; 58T- 250mm; 60T- 258mm; 62T- 266mm
Weight
 40T- 75g; 42T- 80g; 44T- 89g; 46T- 98g; 48T- 109g; 50T- 116g; 52T- 123g; 54T- 133g; 56T- 141g; 58T- 154g; 60T- 165g; 62T- 183g
Ovality
 12%
Timing
 108° (top dead center)
Material
 Aluminum 7075-T6
Surface coating
 Anodizing
Technology
 Narrow Wide chainring teeth (1-speed)

Compatibility

Shifting
 1x11
Chains

Chainrings you may use the following chains:

all 11sp, 12sp Shimano;

11sp, 12sp SRAM Flattop;

KMC chains;

NOTE: the chainring 1X (1-speed, single) is not compatible with 2X (2-speed, double setups)
Cranks

For Shimano 2×11 speed cranks with 110 mm Asymmetrical bolt circle diameter (4-arms): Dura-Ace R9100; Ultegra R8000; 105 R7000 and Dura-Ace 9000; Ultegra 6800; 105 5800; Tiagra 4700;

Not compatible with Shimano 2×11 cranks with PowerMeters
Derailleur
 Only for use with a single system without a front derailleur
Covers
 with ALUGEAR Covers for 11sp. chainring
Powermeter

not compatible with a Shimano 11sp. crankset integrated power meter

Recommendations

  • For the best appearance, you may use ALUGEAR AERO COVER (for Ultegra R8000 cranks)
  • Also, you may use ALUGEAR chainring bolts and nuts for mounting: 7mm nuts and 6,5mm bolts are required
  • We recommend the use of a clutch system rear derailleur for the best chain security
  • It is also a good idea to use a new chain with your new ALUGEAR chainring
  • It is recommended to use a well-lubricated chain on every ride

Installation Instructions

Alugear 1X chainring installation with the AERO cover Download
Alugear 1X chainring installation with the nuts and bolts Download
Oval Alugear chainring installation Download

7075-T6

Aerospace grade aluminium

Narrow-wide

Unique tooth profile designed specifically for 1x chainrings, eliminates noise, reduces wear, and ensures reliable chain retention

8+ colours

Match your bike with multiple anodized options

Information

Engineering excellence

ALUGEAR chainrings are some of the lightest chainrings on the market. Using our experience and vigorous testing, we tweaked the arm design and strategically machined the chainrings so that only minimal sacrifices were made in impact strength in exchange for large gains in weight reduction. The chainrings are CNC machined from 7075 T6 aluminum and hard coat industrially anodized to provide protection from mechanical impacts, a good look, and an excellent tactile feel to each of the chainrings that lasts a long time.

A unique tooth profile eliminates chain noise, reduces wear, and provides smooth operation on the entire system of all the most common combinations, such as 10, 11, and 12-speed drives. ALUGEAR chainrings are the best choice if you are looking for a technologically sound chainring with a unique design and low weight.
