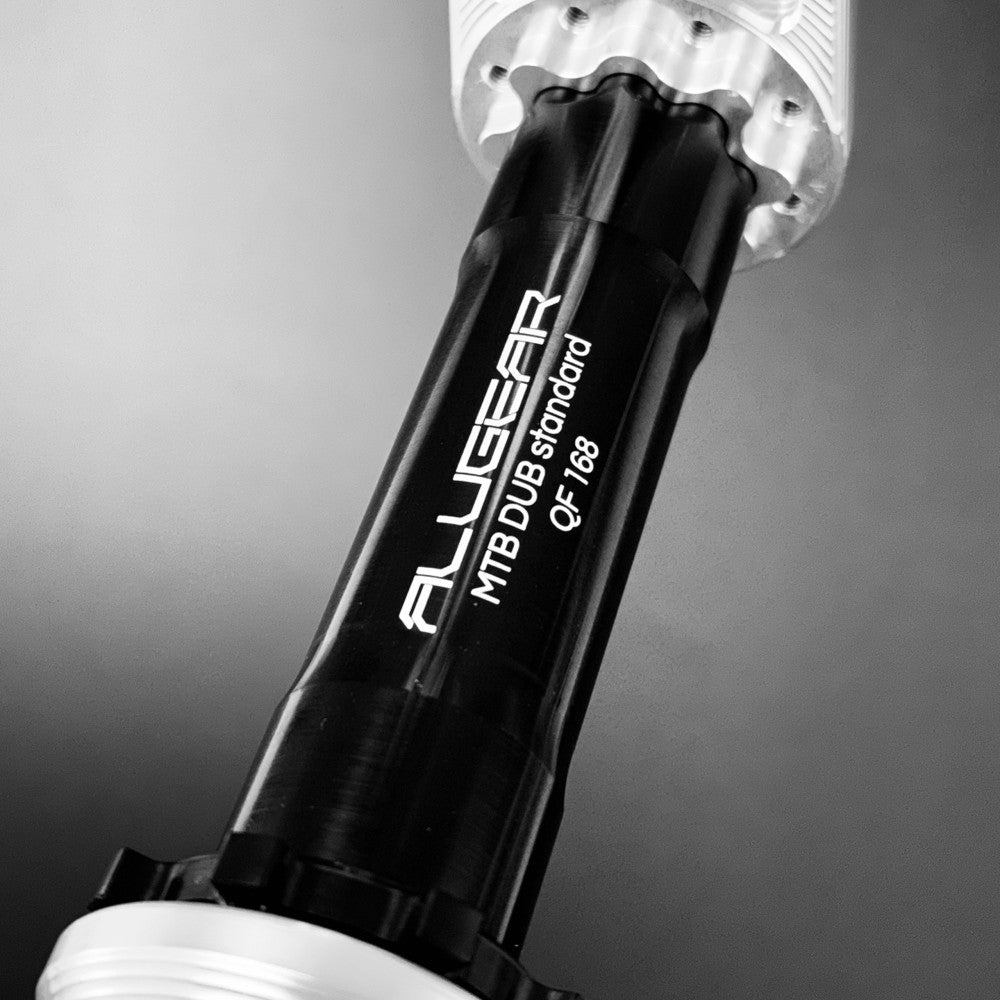

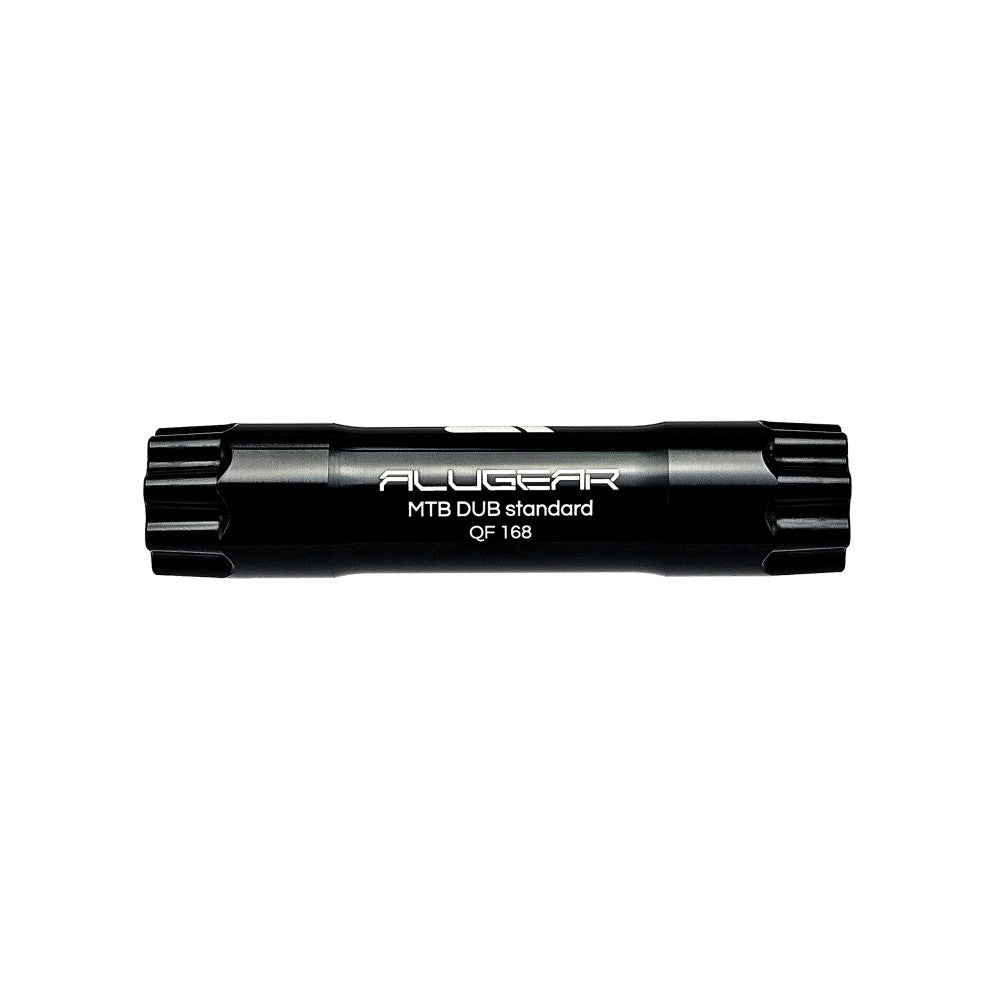

Spindle DUB MTB

• The tool for Crank Bolts: 8 mm hexagon socket permissible torque: is 55 Nm
• Maximum permitted weight of rider + bicycle: is 130 kg
• Cranks are compatible with the chainring direct mount 8-bolts, tool holder Torx T20, maximum permissible torque: is 4 Nm
• The tool for the preload ring’s bolt: 2,5 mm hexagon socket, torque: 2 Nm
• The tool for integrated pullers is a cassette lockring tool, the recommended permissible torque: 20 Nm
• The recommended torque for the pedal shaft is 35-40 Nm unless otherwise specified by the pedal manufacturer
• Use a torque wrench for precise tightening
• Please handle the removal and installation tool carefully to avoid damaging any parts of the Crankset

When installing and removing the Сranks, please note that:

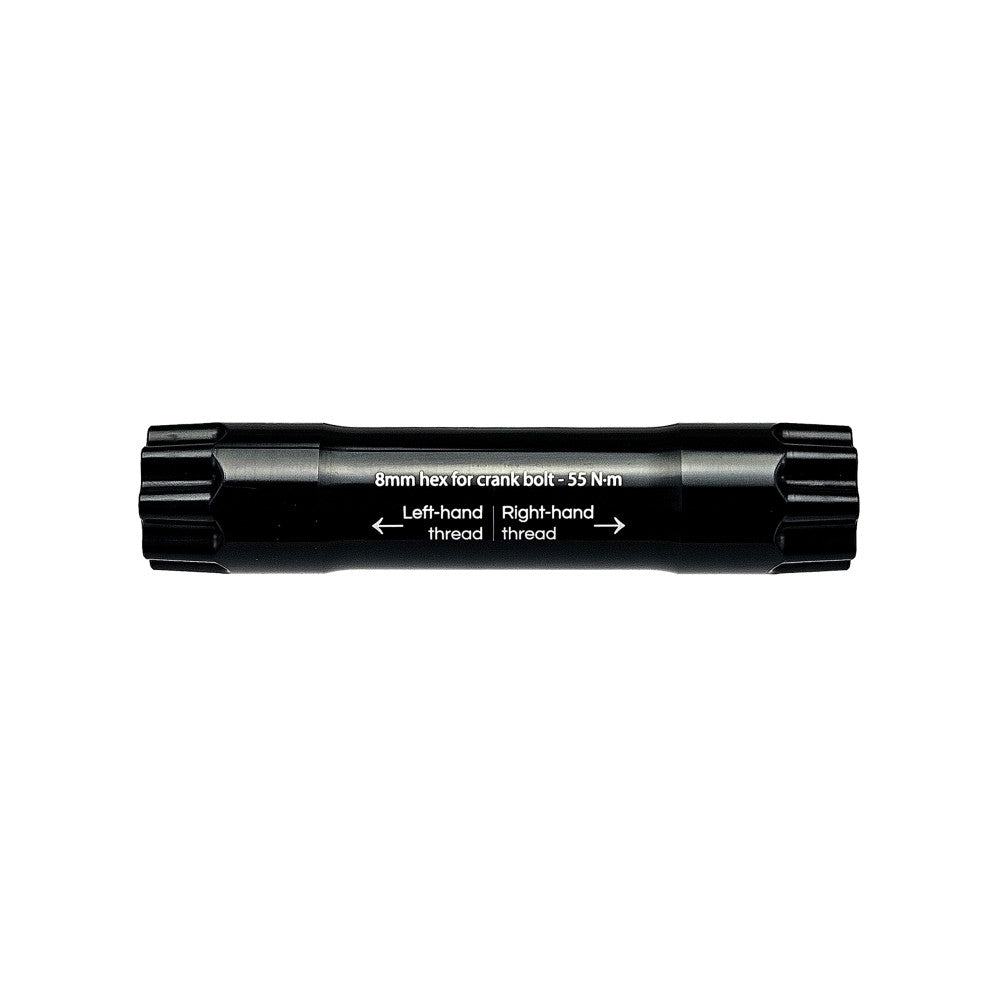

• Fixing crank bolt has left-threaded on the non-drive side
• Fixing crank bolt has right-threaded on the drive side
• For removing the crank arm is used self-extracting hardware

We carefully designed our cranks and threaded the Crank Bolts and Integrated Pullers so that they would minimize the possibility of the crank arms coming loose

The ALUGEAR Stellar cranksets are produced from durable materials, giving them exceptional longevity. Keep this in mind during assembly, maintenance, or operation of the component. Due to the material's resilience, most minor damages will not harm the cranksets. However, when handling the cranksets, it is crucial to be extremely careful during operation and maintenance, using only those tools that are specifically designed for installation and service tasks
