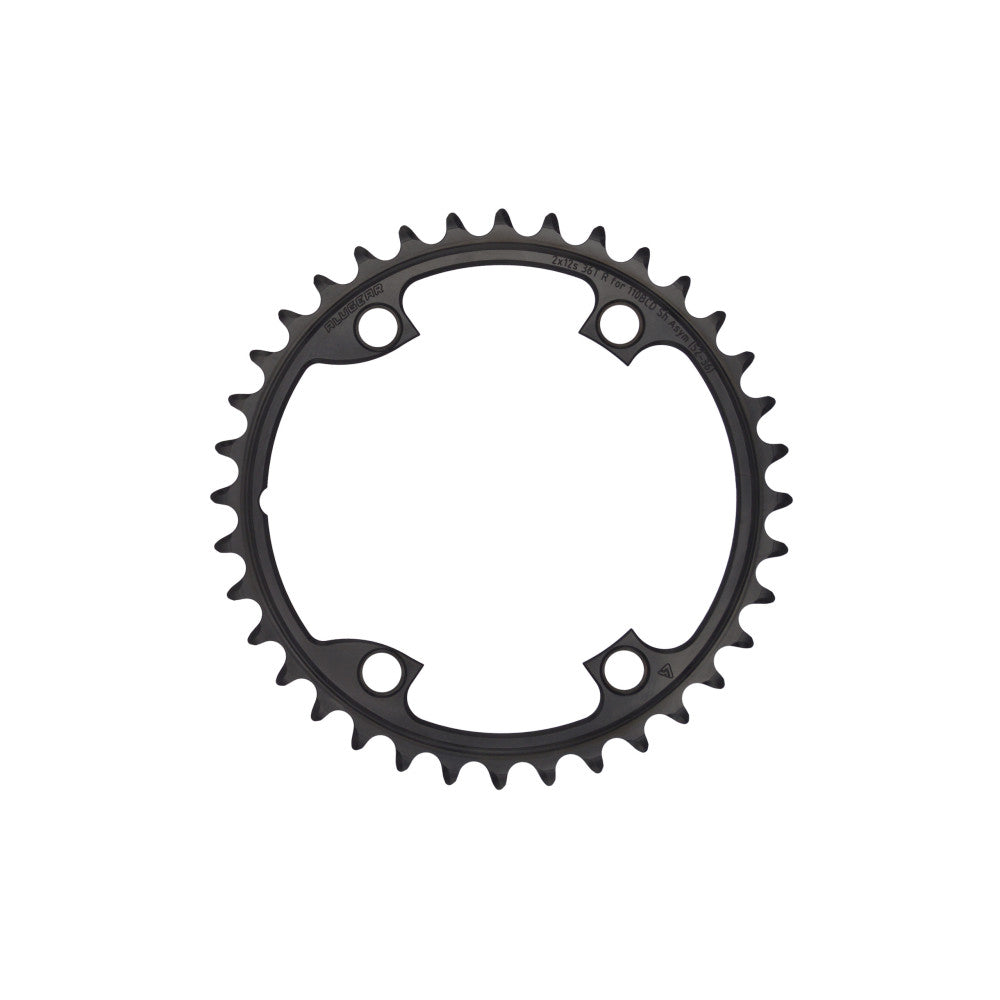

Black ALUGEAR round road inner chainring, 110 BCD 4-bolt Shimano asymmetric, narrow-wide teeth, 2x12-speed
Close-up of red anodized ALUGEAR AERO road chainring surface with wave machined finish, 110 BCD 4-bolt Shimano asymmetric
Close-up of black ALUGEAR AERO road chainring surface with wave machined finish, 110 BCD 4-bolt Shimano asymmetric
Close-up of silver natural ALUGEAR AERO road chainring surface with wave machined finish, 110 BCD 4-bolt Shimano asymmetric
Close-up macro detail of blue anodized ALUGEAR AERO outer GRX chainring teeth and wave-machined surface
Close-up of orange anodized ALUGEAR AERO road chainring surface with wave machined finish, 110 BCD 4-bolt Shimano asymmetric
Green anodized ALUGEAR AERO round road chainring close-up teeth detail, 110 BCD 4-bolt Shimano asymmetric
Close-up of gold anodized ALUGEAR AERO road chainring surface with wave machined finish, 110 BCD 4-bolt Shimano asymmetric
Close-up macro detail of purple anodized ALUGEAR AERO outer GRX chainring teeth and wave-machined surface

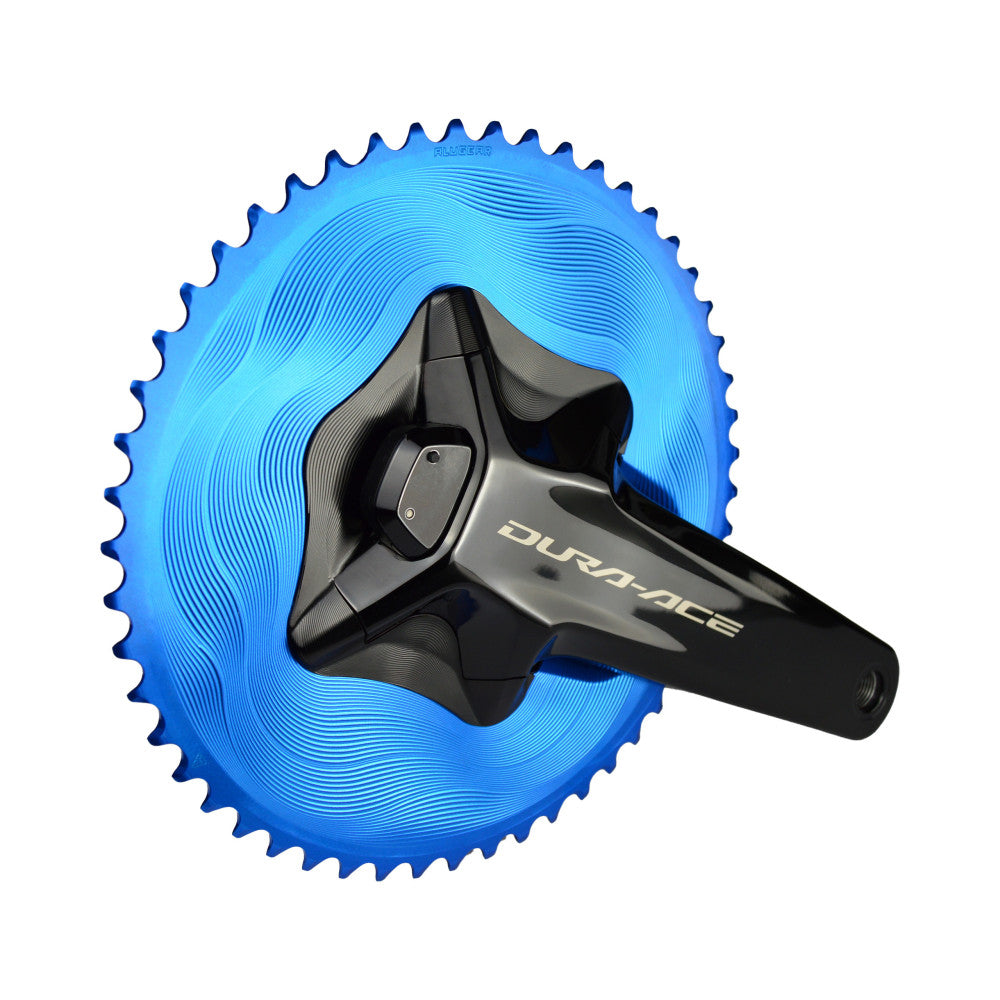

Blue anodized ALUGEAR round road outer chainring on Shimano Dura-Ace R9200 crank, 110 BCD 4-bolt asymmetric, angled view

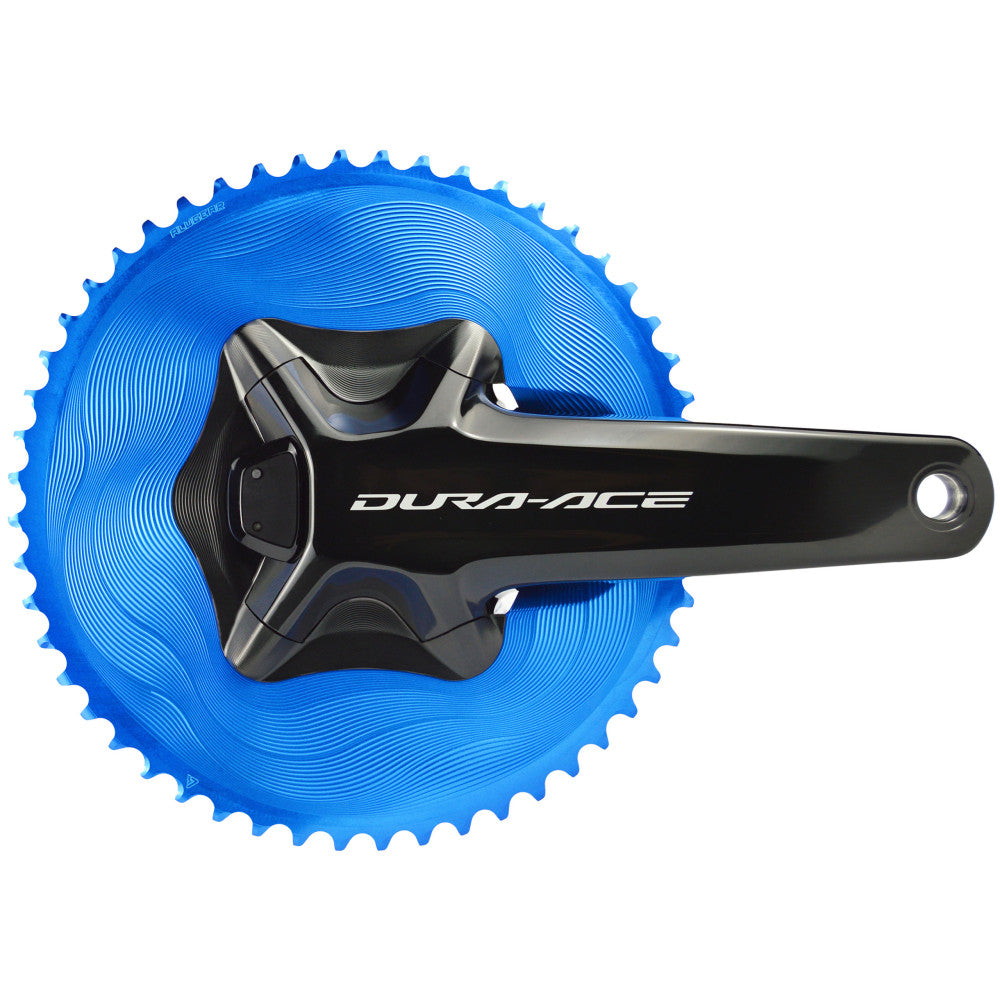

Blue anodized ALUGEAR round road outer chainring on Shimano Dura-Ace R9200 crank, 110 BCD 4-bolt asymmetric, front view

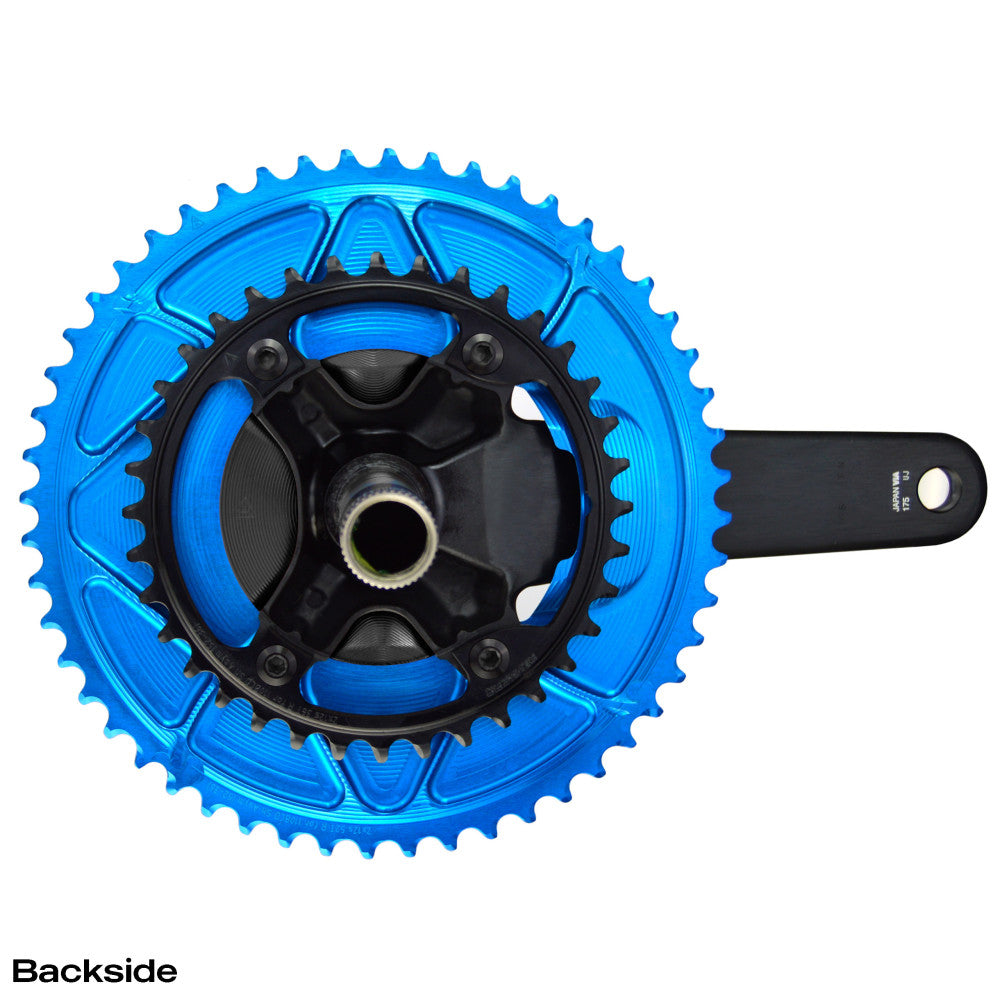

Blue anodized ALUGEAR round road outer and black inner chainring set on crank, 110 BCD 4-bolt Shimano asymmetric, backside view
alugear

Chainrings Set 2x12sp. Round for 110 BCD 4b Shimano Asymmetric

Chainring set 2-speed ROUND AERO for Shimano 110 BCD 4 holes Asymmetrical Dura-Ace R9200, Ultegra R8100, 105 R7100 (12 speed)

Sale price$165.00
Color: Black
Size: 48T-34T
In stock
Share

Shipping and processing

Processing time: up to 10 business days. Shipping time: 2 to 7 business days. Provided by FedEx

Return policy

You can return an unused product within 30 days
Blue anodized ALUGEAR round road outer chainring and black inner ring pair, 110 BCD 4-bolt Shimano asymmetric, wave pattern
Chainrings Set 2x12sp. Round for 110 BCD 4b Shimano AsymmetricBlack / 48T-34T Sale price$165.00
Learn more

Technical specifications

Intended use
 2X 12sp. for Road, Time Trial bikes
Optimum chainring combinations
 50-34; 52-36; 54-40; 56-40
Mounting position
 outside 50T; 52T; 54T; 56T; inside 34T; 36T; 40T
Bolt circle diameter
 110 mm Shimano Asymmetric
Weight
 50 teeth - 112g; 52 teeth - 127g; 54 teeth - 143g; 56 teeth - 171g (adapter+bolt - 4g); 34 teeth - 26g; 36 teeth - 29g; 40 teeth - 40g
Material
 Aluminum 7075-T6
Made
 CNC milling
Surface coating
 Anodizing

Compatibility

Shifting
 2x12
Chains
 Chainrings you may use the following chains: 12sp Shimano HG+
Cranks

For Shimano 2×12 speed cranks with 110 mm Asymmetrical bolt circle diameter (4-arms): FC-R7100; FC-R8100 (P); FC-R9200 (P).

The chainrings are compatible with 12-speed cranks FC-R8100-P; FC-R9200-P with Original PowerMeter
Covers
 with ALUGEAR Covers for 12sp. chainring
Powermeter
 with a Shimano 12sp. crankset integrated power meter

Recommendations

  • For the best appearance, you may use ALUGEAR AERO COVER (for 105 R7100 , Ultegra R8100 , R8100-P or Dura-Ace R9200 , R9200-P cranks)
  • Also, you may use ALUGEAR chainring bolts and nuts for mounting: 7mm nuts and 6,5mm bolts are required It is also a good idea to use a new chain with your new ALUGEAR chainrings
  • It is recommended to use a well-lubricated chain on every ride
  • We recommend using the optimal Alugear 2-speed chainrings combination
  • The correct operation of the double set is guaranteed only when using Alugear outer and inner chainrings together
  • Tool holder: 5 mm hexagon socket maximum permissible torque: 10 Nm

Installation Instructions

Alugear 2X chainring installation with the AERO cover Download
Alugear 2X chainring installation with the nuts and bolts Download
Front Derailleur Adapter Installation for 56T-40T set Download

7075-T6

Aerospace grade aluminium

Ramped & pinned

Reliable 2X shifting under any conditions

8+ colours

Match your bike with multiple anodized options

Information

Engineering excellence

ALUGEAR chainrings are some of the lightest chainrings on the market. Using our experience and vigorous testing, we tweaked the arm design and strategically machined the chainrings so that only minimal sacrifices were made in impact strength in exchange for large gains in weight reduction. With unique tooth profiles, ramp and climbing aids allow the chainrings particularly soft and fast shifting. So with them, shifting under load is easy. The chainrings have been specially tuned by climbing aids and can only achieve their superior shifting performance in the combinations provided by ALUGEAR. The chainrings are CNC machined from 7075 T6 aluminum and hard coat industrially anodized to provide protection from mechanical impacts, a good look, and an excellent tactile feel to each of the chainrings that lasts a long time.

A unique tooth profile eliminates chain noise, reduces wear, and provides smooth operation on the entire system of all the most common combinations of drivetrains. The tooth profile is specially designed for use with Road chains.

ALUGEAR chainrings are the best choice if you are looking for a technologically sound chainring with a unique design and low weight.

Quality Manufacturing - proudly made in Poland.
